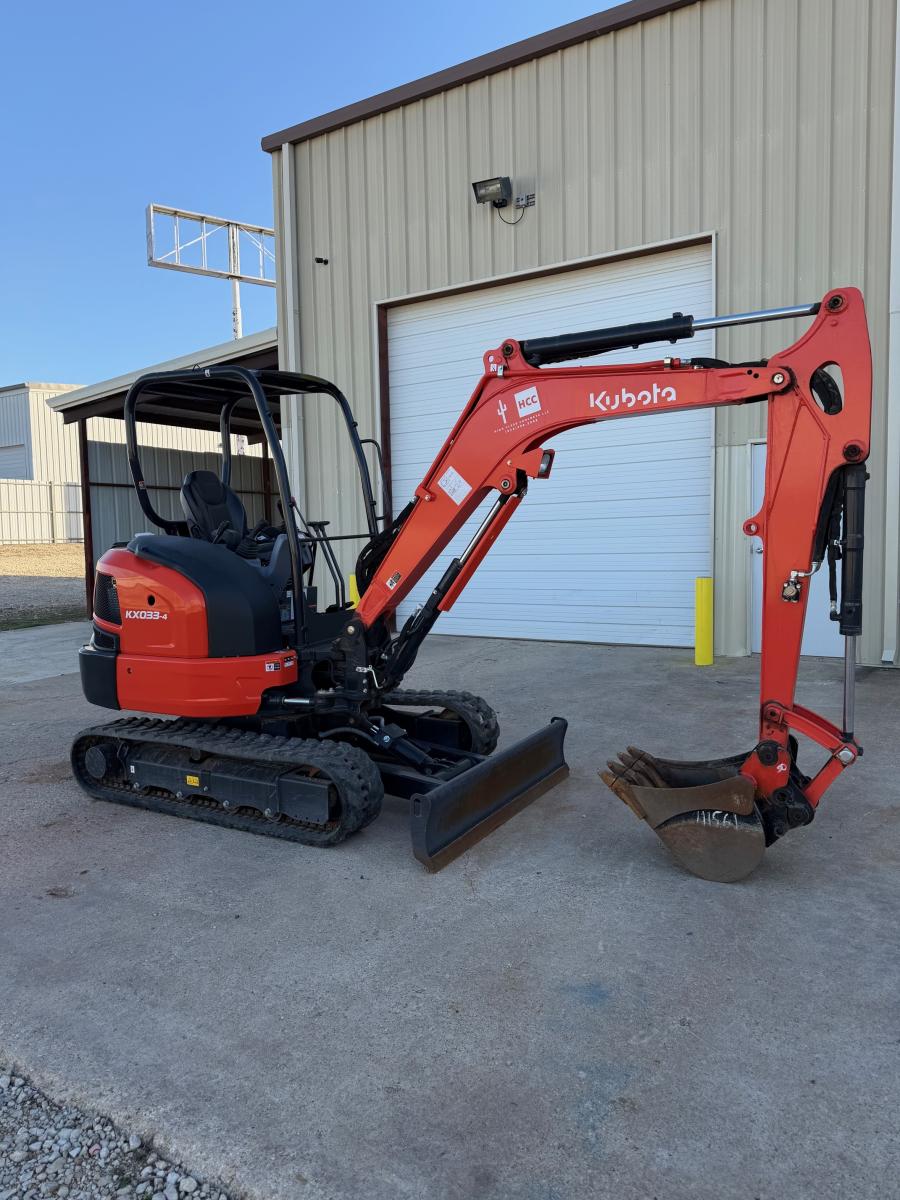

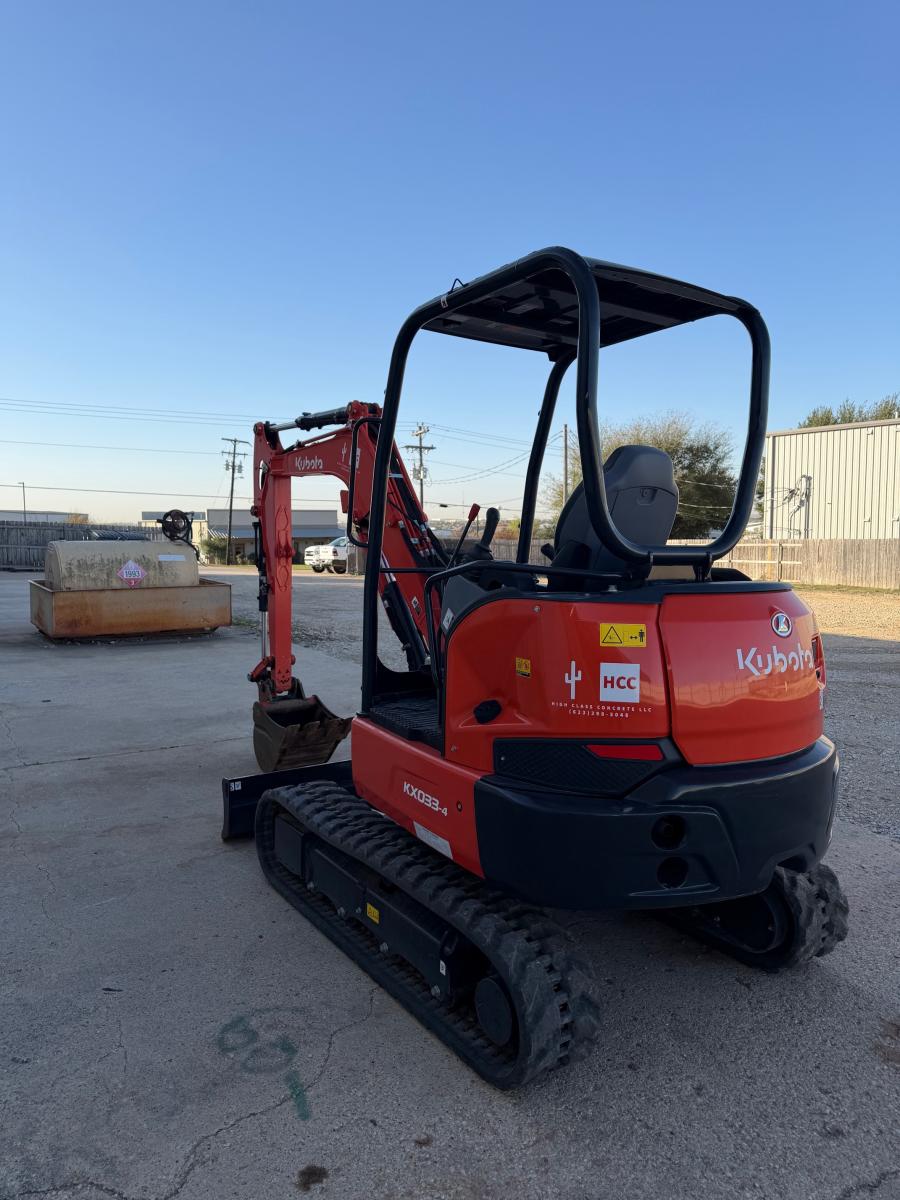

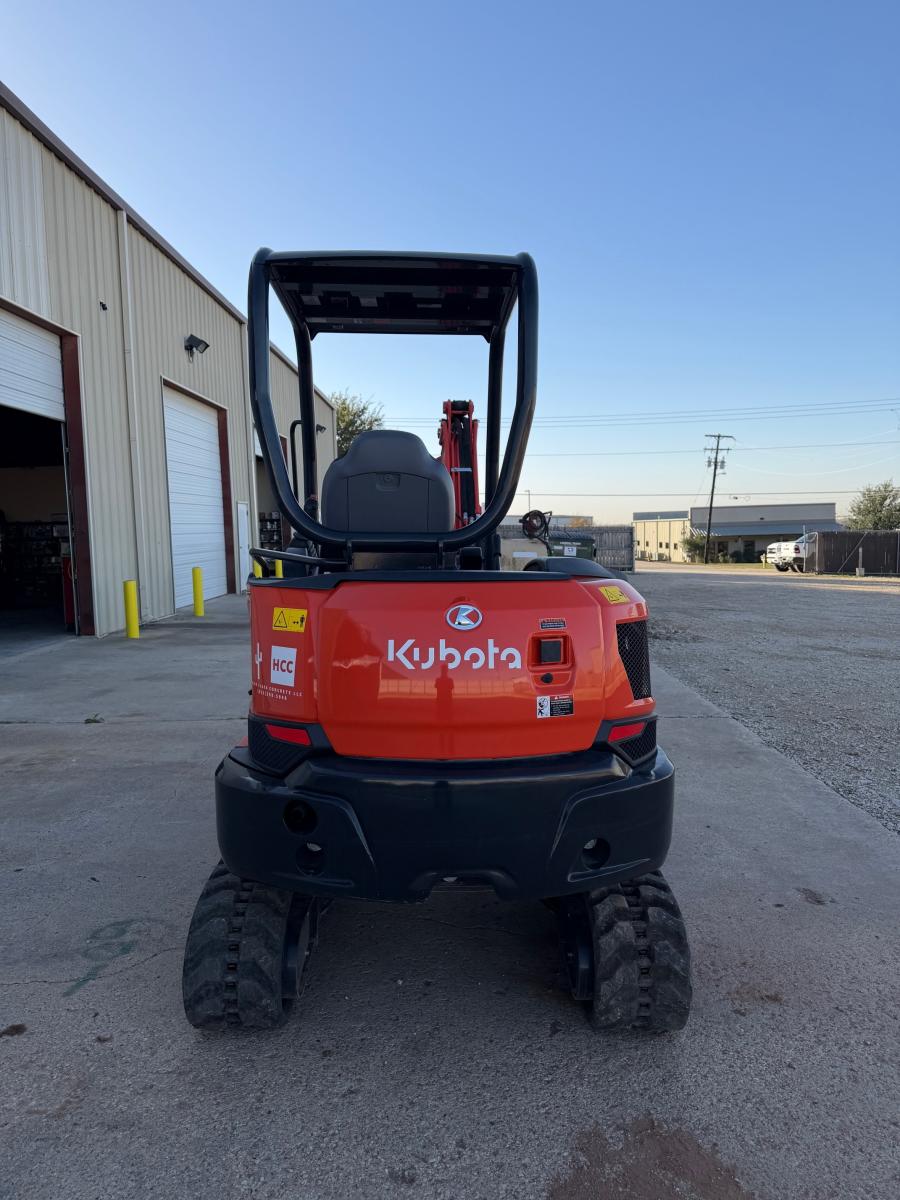

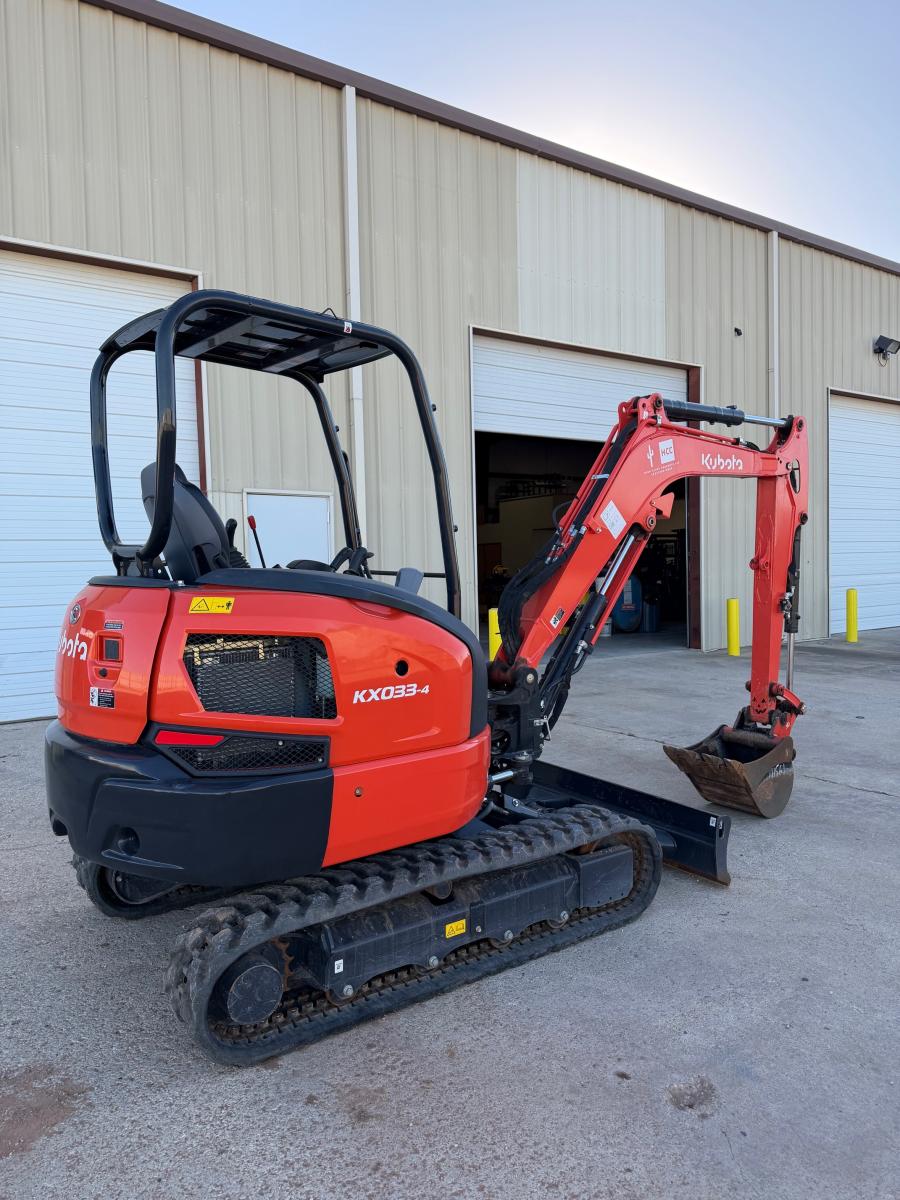

Details: This machine comes with an 18" bucket, auxiliary hydraulics, recently serviced, financing and delivery available. Call us today if you need more information at 512-312-4020.

Engine Specs

• Model: Kubota D1703M-DI-E4 diesel
• Gross Power: 24.8 hp (18.5 kW) at 2200 RPM
• Net Power: 23.2 hp (17.3 kW) at 2200 RPM
• Displacement: 100.5 cubic inches (1647 cc)
• Fuel Tank Capacity: 12.4 gallons (45 liters)

Performance & Dimensions

• Operating Weight: 7,420 lbs (canopy) to 8,300 lbs (cab)
• Max Digging Depth: 10 ft 6 in
• Max Vertical Wall Depth: 7 ft 4 in
• Max Digging Height: 16 ft 4 in
• Bucket Breakout Force: 8,138 lbs
• Arm Breakout Force: 3,867 lbs
• Travel Speed: Low 1.9 mph / High 2.9 mph
• Overall Length: 15 ft 6 in
• Overall Width: 5 ft 1 in
• Overall Height: 8 ft 1 in

Hydraulics

• Pump Flow: 16.2 GPM (61 LPM)
• Auxiliary Flow: 15.8 GPM
• System Fluid Capacity: 11.8 gallons
